Cilium Networking & eBPF-Powered Security Policies on RKE2

Why Replace Canal with Cilium on RKE2?

RKE2's default Canal CNI combines Flannel for overlay networking with Calico for network policy enforcement. It's a proven, stable stack that handles most workloads without complaint. The problem shows up when you start adding network policies at scale, need visibility into what's happening between services, or want security enforcement beyond "allow this IP on this port."

Canal enforces network policies through iptables rules. Every NetworkPolicy object you create translates to iptables rules on every node. At 500+ services with network policies, you're looking at thousands of rules per node—and every single packet traverses that chain sequentially. Latency increases linearly, CPU usage spikes during rule updates, and a single iptables-restore operation can take seconds while packets get dropped.

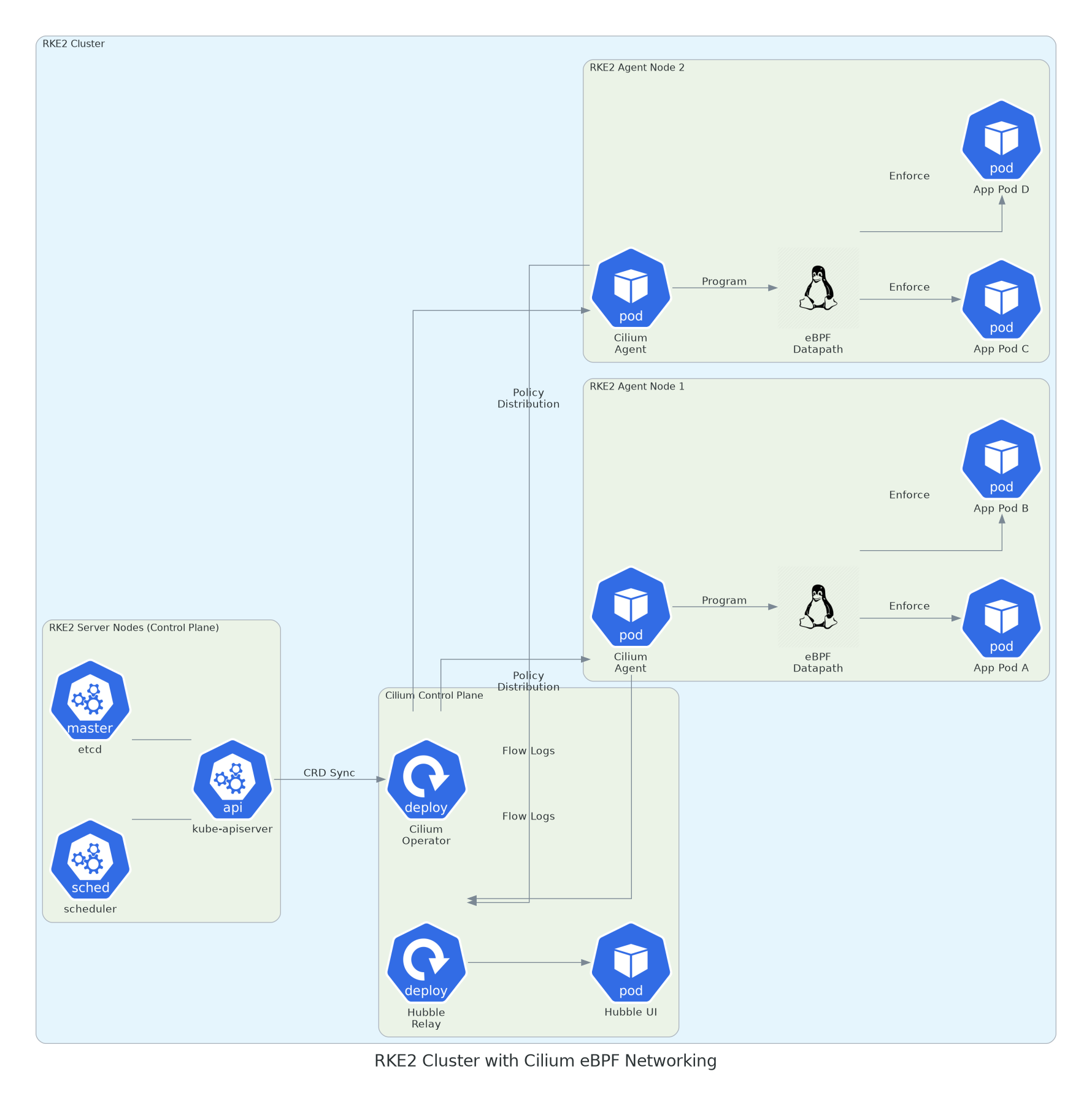

Cilium takes a fundamentally different approach. Instead of bolting network logic on top of the kernel's networking stack, it injects purpose-built eBPF programs directly into the kernel datapath. These programs use hash maps for O(1) lookups instead of sequential rule matching, bypass the entire iptables/netfilter stack, and operate on Kubernetes-native identities rather than IP addresses.

eBPF Deep Dive: How the Datapath Actually Works

eBPF (extended Berkeley Packet Filter) is a technology built into the Linux kernel that lets you run sandboxed programs at various hook points—network interfaces, system calls, kernel functions—without modifying kernel source code or loading kernel modules. Cilium leverages this to build a complete networking, security, and observability stack that operates at kernel speed.

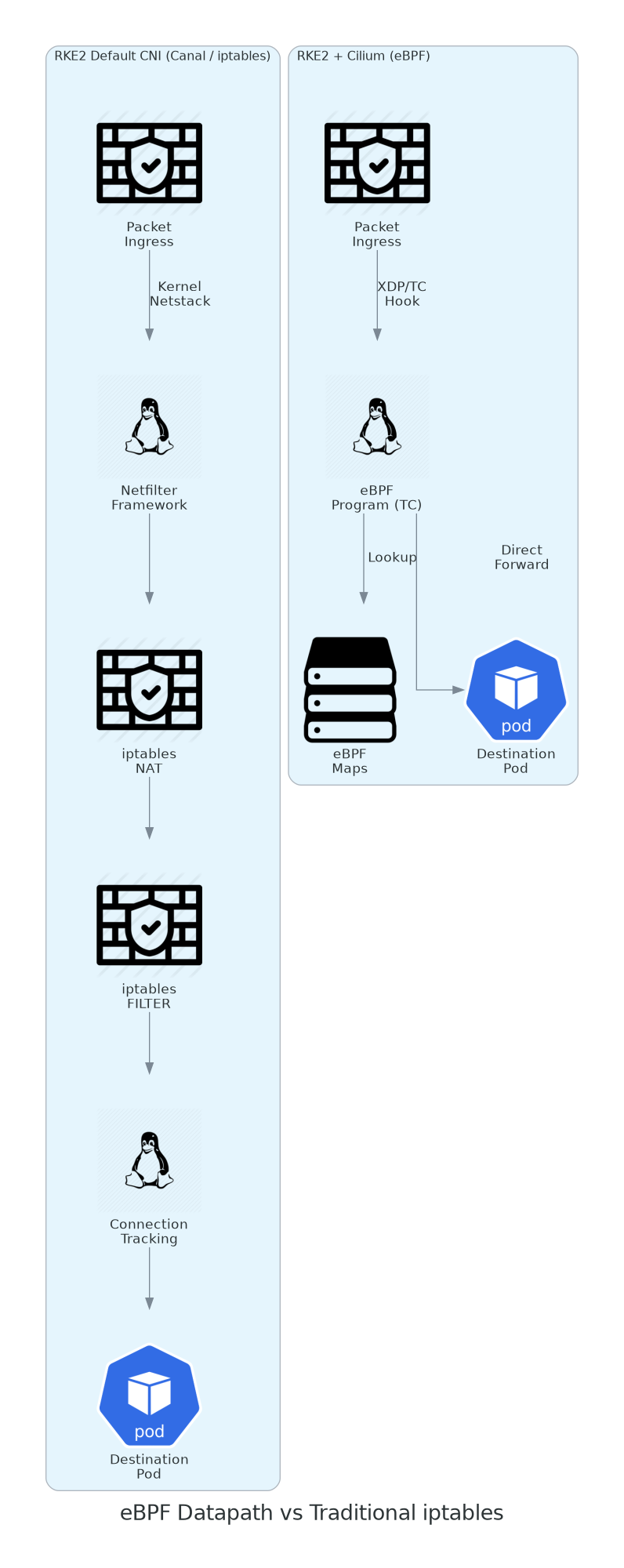

Canal's iptables Path vs. Cilium's eBPF Path

Understanding the difference requires looking at what happens when a packet arrives at an RKE2 node. With Canal, a packet enters the kernel networking stack and passes through netfilter hooks: PREROUTING, INPUT, FORWARD, OUTPUT, POSTROUTING. At each hook, every iptables rule is evaluated sequentially. Connection tracking adds another layer of state management. By the time a packet reaches its destination pod, it has traversed dozens of processing stages.

With Cilium, an eBPF program attached at the TC (Traffic Control) ingress hook intercepts the packet immediately. The program performs a single hash-map lookup against the destination identity, applies the policy verdict, and forwards the packet directly—completely bypassing netfilter, iptables, and all the overhead that comes with them.

eBPF Programs Cilium Attaches

Cilium loads multiple eBPF programs at different kernel hook points depending on the feature set you enable:

Hook Point	eBPF Program	Purpose
XDP (eXpress Data Path)	bpf_xdp.c	DDoS protection, early packet drops before kernel network stack
TC Ingress	bpf_lxc.c	L3/L4/L7 policy enforcement on incoming packets per pod
TC Egress	bpf_lxc.c	Egress policy enforcement and SNAT for external traffic
Socket (cgroup/connect)	bpf_sock.c	Service load balancing at socket level, replacing kube-proxy
cgroup/sendmsg	bpf_sockops.c	Socket-level acceleration for node-local pod communication

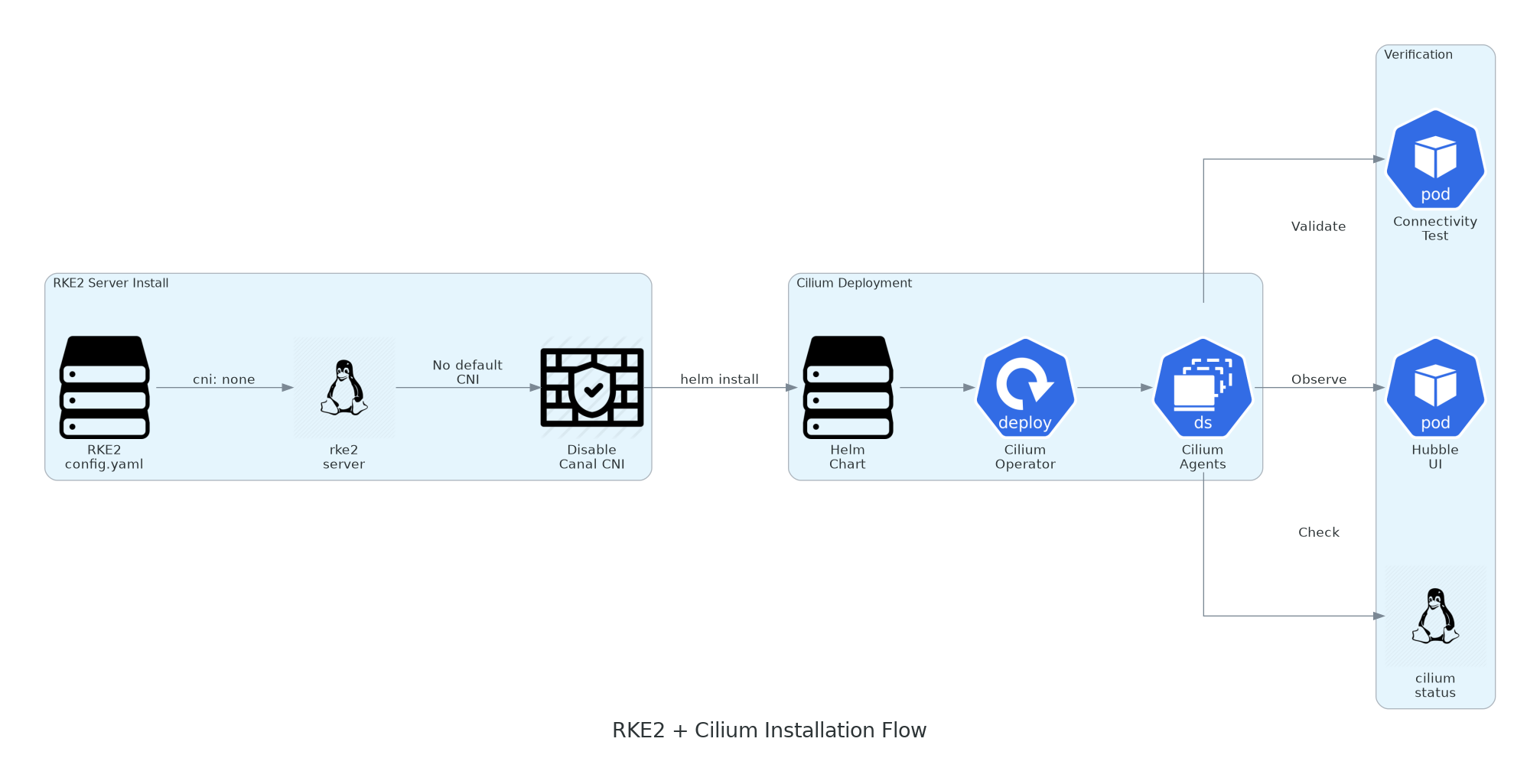

Installing Cilium on RKE2: Replacing Canal

RKE2 supports disabling its default CNI at install time, which is exactly what we need. The key is telling RKE2 to skip Canal so Cilium can take over as the sole CNI. This section walks through a clean RKE2 install with Cilium from the start, plus migration steps if you're running an existing Canal cluster.

Option A: Fresh RKE2 Install with Cilium

# /etc/rancher/rke2/config.yaml (on each server node)
# Disable the default Canal CNI — Cilium will handle networking
cni: none

# Disable kube-proxy — Cilium's eBPF replaces it entirely
disable-kube-proxy: true

# Cluster networking settings
cluster-cidr: 10.42.0.0/16
service-cidr: 10.43.0.0/16
cluster-dns: 10.43.0.10

# TLS SANs for API server access
tls-san:
  - rke2-server-01.example.com
  - 10.0.1.10
  - rke2-vip.example.com

# Write kubeconfig with correct permissions
write-kubeconfig-mode: "0644"

#!/bin/bash
# === Server Node 1 (initial) ===
curl -sfL https://get.rke2.io | INSTALL_RKE2_TYPE=server sh -

# Enable and start RKE2 server
systemctl enable rke2-server
systemctl start rke2-server

# Wait for RKE2 to be ready (pods will be Pending until CNI is installed)
export KUBECONFIG=/etc/rancher/rke2/rke2.yaml
export PATH=$PATH:/var/lib/rancher/rke2/bin

# Grab the node token for joining other nodes
cat /var/lib/rancher/rke2/server/node-token

# === Server Nodes 2 & 3 (add to config.yaml before starting) ===
# Add to /etc/rancher/rke2/config.yaml on joining servers:
# server: https://rke2-server-01.example.com:9345
# token: <node-token-from-server-1>

# === Agent Nodes (workers) ===
curl -sfL https://get.rke2.io | INSTALL_RKE2_TYPE=agent sh -

# /etc/rancher/rke2/config.yaml on agent nodes:
# server: https://rke2-vip.example.com:9345
# token: <node-token-from-server-1>

systemctl enable rke2-agent
systemctl start rke2-agent

# At this point, nodes will be NotReady — expected, no CNI yet
kubectl get nodes
# NAME              STATUS     ROLES                       AGE   VERSION
# rke2-server-01    NotReady   control-plane,etcd,master   2m    v1.30.6+rke2r1
# rke2-server-02    NotReady   control-plane,etcd,master   1m    v1.30.6+rke2r1
# rke2-server-03    NotReady   control-plane,etcd,master   45s   v1.30.6+rke2r1
# rke2-agent-01     NotReady   <none>                30s   v1.30.6+rke2r1
# rke2-agent-02     NotReady   <none>                25s   v1.30.6+rke2r1

# Install Helm if not present
curl https://raw.githubusercontent.com/helm/helm/main/scripts/get-helm-3 | bash

# Add the Cilium Helm repo
helm repo add cilium https://helm.cilium.io/
helm repo update

# cilium-values.yaml
# Production Cilium configuration for RKE2
# ================================================

# Replace kube-proxy entirely with eBPF
kubeProxyReplacement: true

# Must match RKE2 API server endpoint for kube-proxy replacement
k8sServiceHost: rke2-vip.example.com
k8sServicePort: 6443

# Hubble observability — full stack
hubble:
  relay:
    enabled: true
  ui:
    enabled: true
  metrics:
    enableOpenMetrics: true
    enabled:
      - dns
      - drop
      - tcp
      - flow
      - icmp
      - http


# eBPF-based masquerading (replaces iptables SNAT)
bpf:
  masquerade: true
  tproxy: true

# Bandwidth manager for fair queuing and rate limiting
bandwidthManager:
  enabled: true

# IPAM — use Kubernetes host-scope (works with RKE2's 10.42.0.0/16)
ipam:
  mode: kubernetes

# Operator settings
operator:
  replicas: 2

# Enable Cilium Ingress Controller (optional — replaces nginx-ingress)
ingressController:
  enabled: true
  default: true
  loadbalancerMode: shared

# Monitor aggregation for reduced Hubble overhead in production
monitor:
  enabled: false

# Deploy Cilium
helm install cilium cilium/cilium \
    --version 1.16.5 \
    --namespace kube-system \
    --values cilium-values.yaml \
    --wait --timeout 10m

# Watch nodes come online as Cilium agents start
kubectl get nodes -w
# NAME              STATUS   ROLES                       AGE   VERSION
# rke2-server-01    Ready    control-plane,etcd,master   5m    v1.30.6+rke2r1
# rke2-server-02    Ready    control-plane,etcd,master   4m    v1.30.6+rke2r1
# rke2-server-03    Ready    control-plane,etcd,master   3m    v1.30.6+rke2r1
# rke2-agent-01     Ready    <none>                3m    v1.30.6+rke2r1
# rke2-agent-02     Ready    <none>                3m    v1.30.6+rke2r1

# Verify all Cilium pods are running
kubectl -n kube-system get pods -l app.kubernetes.io/part-of=cilium

# Install Cilium CLI
CILIUM_CLI_VERSION=$(curl -s https://raw.githubusercontent.com/cilium/cilium-cli/main/stable.txt)
curl -L --fail --remote-name-all \
    https://github.com/cilium/cilium-cli/releases/download/${CILIUM_CLI_VERSION}/cilium-linux-amd64.tar.gz
tar xzvf cilium-linux-amd64.tar.gz -C /usr/local/bin
rm cilium-linux-amd64.tar.gz

# Check Cilium status
cilium status --wait

# Expected output:
#     /¯¯\
#  /¯¯\__/¯¯\    Cilium:             OK
#  \__/¯¯\__/    Operator:           OK
#  /¯¯\__/¯¯\    Envoy DaemonSet:    OK
#  \__/¯¯\__/    Hubble Relay:       OK
#     \__/       ClusterMesh:        disabled
#
# Deployment             cilium-operator    Desired: 2, Ready: 2/2
# DaemonSet              cilium             Desired: 5, Ready: 5/5
# Deployment             hubble-relay       Desired: 1, Ready: 1/1
# Deployment             hubble-ui          Desired: 1, Ready: 1/1

# Run full connectivity test (creates test namespaces, deploys test pods)
cilium connectivity test

# Verify kube-proxy replacement
cilium status | grep KubeProxyReplacement
# KubeProxyReplacement:   True



# Verify eBPF is handling services (zero iptables KUBE- rules)
iptables-save | grep -c "KUBE-SVC"
# Output: 0

Option B: Migrating an Existing RKE2 Cluster from Canal to Cilium

If you're running an existing RKE2 cluster with Canal and want to migrate to Cilium, this requires a rolling process. You can't hot-swap CNIs—there will be a brief disruption window. Plan for it during a maintenance window.

#!/bin/bash
# === Canal to Cilium Migration on Running RKE2 ===
# WARNING: This causes a brief network disruption. Schedule a maintenance window.

# Step 1: Cordon and drain nodes one at a time (start with workers)
kubectl cordon rke2-agent-01
kubectl drain rke2-agent-01 --ignore-daemonsets --delete-emptydir-data

# Step 2: On the drained node, update RKE2 config
# /etc/rancher/rke2/config.yaml
# cni: none
# disable-kube-proxy: true

# Step 3: Restart RKE2 on that node
systemctl restart rke2-agent   # or rke2-server for control plane nodes

# Step 4: Repeat for all nodes (agents first, servers last)
# After all nodes are reconfigured, Canal pods will be gone

# Step 5: Clean up Canal remnants
kubectl -n kube-system delete daemonset canal 2>/dev/null || true
kubectl -n kube-system delete daemonset rke2-canal 2>/dev/null || true
kubectl delete crd felixconfigurations.crd.projectcalico.org 2>/dev/null || true

# Step 6: Install Cilium (same helm install as Option A)
helm install cilium cilium/cilium \
    --version 1.16.5 \
    --namespace kube-system \
    --values cilium-values.yaml \
    --wait --timeout 10m

# Step 7: Uncordon all nodes
kubectl uncordon rke2-agent-01
kubectl uncordon rke2-agent-02
# ... repeat for all nodes

# Step 8: Clean up old CNI configs on each node (SSH required)
# rm -f /etc/cni/net.d/10-canal.conflist
# rm -f /etc/cni/net.d/calico-kubeconfig

# Step 9: Validate
cilium status --wait
cilium connectivity test

CiliumNetworkPolicy: L3/L4/L7 Security Enforcement

Kubernetes NetworkPolicy is limited. It operates at L3/L4 only (IP + port), can't inspect HTTP methods or paths, doesn't support DNS-based rules, and has no concept of deny policies. CiliumNetworkPolicy extends this with identity-aware L3/L4 rules, full L7 HTTP/gRPC/Kafka inspection, DNS-aware policies, and explicit deny rules that override allows.

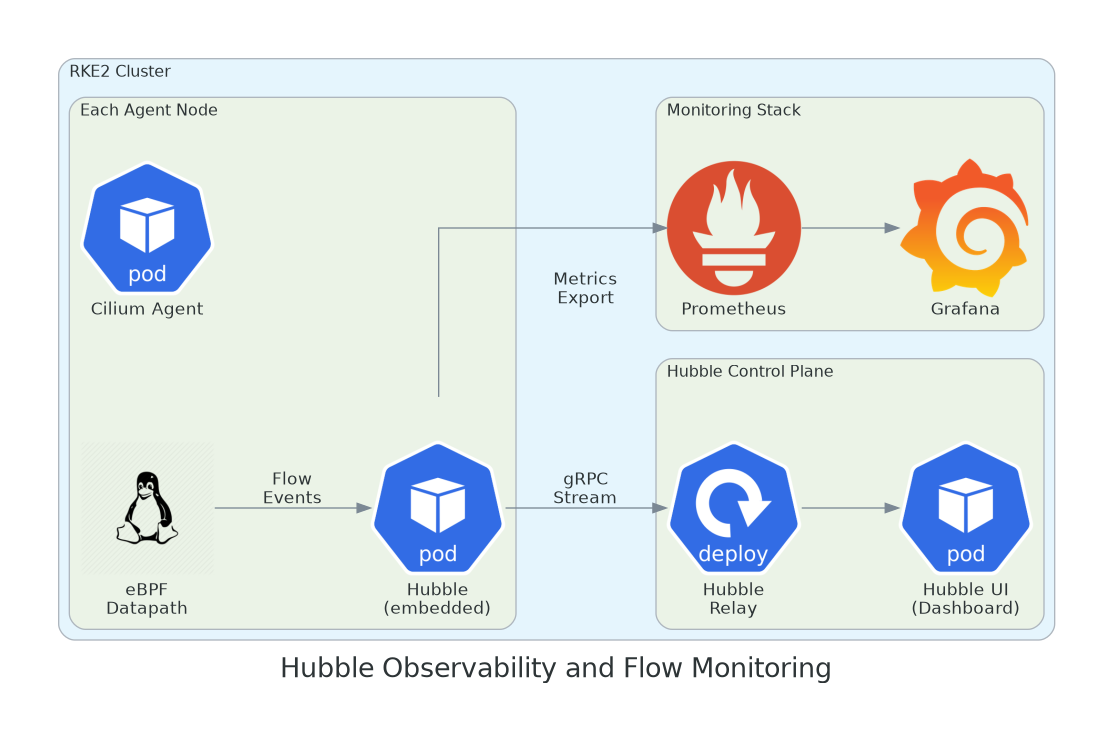

Hubble: eBPF-Powered Observability

Network policies are useless if you can't see what's happening. Hubble is Cilium's built-in observability platform that captures every network flow at the eBPF level—zero application changes, zero sidecars, zero performance overhead. It gives you real-time visibility into which services are talking to each other, what's being allowed or denied, DNS resolution patterns, and HTTP request/response metrics.

Using Hubble CLI for Real-Time Debugging

# Install Hubble CLI
HUBBLE_VERSION=$(curl -s https://raw.githubusercontent.com/cilium/hubble/main/stable.txt)
curl -L --fail --remote-name-all \
    https://github.com/cilium/hubble/releases/download/${HUBBLE_VERSION}/hubble-linux-amd64.tar.gz
tar xzvf hubble-linux-amd64.tar.gz -C /usr/local/bin
rm hubble-linux-amd64.tar.gz

# Port-forward to Hubble Relay
kubectl -n kube-system port-forward svc/hubble-relay 4245:80 &

# Observe all traffic in the backend namespace
hubble observe --namespace backend --follow

# Filter for denied traffic — your go-to for debugging policy issues
hubble observe --verdict DENIED --follow

# Watch specific pod-to-pod communication
hubble observe --from-pod backend/backend-api-7d4f5c \
    --to-pod database/postgres-0 \
    --protocol TCP \
    -o json | jq '.'

# DNS query monitoring — see what your pods are resolving
hubble observe --type l7 --protocol DNS --namespace backend

# HTTP flow analysis — method, path, response codes, latency
hubble observe --type l7 --protocol HTTP --namespace frontend \
    -o compact

# Find who's talking to a specific service
hubble observe --to-label app=postgres --follow -o compact

Production Hardening and Troubleshooting

Essential Cilium Health Checks for RKE2

#!/bin/bash
# === Comprehensive Cilium Health Check for RKE2 ===
echo "=== RKE2 Node Status ==="
kubectl get nodes -o wide

echo -e "\n=== Cilium Agent Status ==="
cilium status --verbose

echo -e "\n=== Cilium Agent on Each Node ==="
kubectl -n kube-system get pods -l k8s-app=cilium -o wide

echo -e "\n=== Node Connectivity ==="
kubectl -n kube-system exec ds/cilium -- cilium node list

echo -e "\n=== Active Endpoints ==="
kubectl -n kube-system exec ds/cilium -- cilium endpoint list | head -30

echo -e "\n=== Policy Enforcement Status ==="
kubectl -n kube-system exec ds/cilium -- cilium policy get | head -40


echo -e "\n=== eBPF Service Map (kube-proxy replacement) ==="
kubectl -n kube-system exec ds/cilium -- cilium service list | head -20

echo -e "\n=== Recent Policy Denials ==="
hubble observe --verdict DENIED --last 50 -o compact 2>/dev/null || \
    echo "Hubble not port-forwarded. Run: kubectl -n kube-system port-forward svc/hubble-relay 4245:80"

echo -e "\n=== BPF Program Attachments ==="
kubectl -n kube-system exec ds/cilium -- cilium bpf prog list | head -20

Common Issues on RKE2 and Fixes

Cilium vs. RKE2 Default Stack: When to Switch

Feature	Cilium (eBPF)	Canal (RKE2 Default)	Calico (Standalone)
Dataplane	eBPF (kernel-native)	iptables (Calico + Flannel)	iptables or eBPF (beta)
L7 Policy (HTTP/gRPC)	Native with Envoy	Not supported	Requires Istio
kube-proxy Replacement	Full eBPF	Requires kube-proxy	eBPF (beta)
Built-in Observability	Hubble (flows, DNS, HTTP)	Basic flow logs	Basic flow logs
Service Mesh	Sidecar-free	Requires Istio/Linkerd	Requires Istio/Linkerd
Multi-Cluster	Cluster Mesh (native)	Not supported	Federation (limited)
Kernel Requirement	4.19+ (5.10+ recommended)	Any	Any
RKE2 Integration	Manual (Helm install)	Built-in (default)	Manual (replace Canal)
Best For	Production at scale, zero-trust	Simple clusters, quick setup	Hybrid migration path

Conclusion: When to Replace Canal with Cilium on RKE2

Cilium represents a fundamental shift in how Kubernetes handles networking and security. By moving policy enforcement, load balancing, and observability into the Linux kernel via eBPF, it eliminates the performance cliffs that plague iptables-based CNIs at scale. On RKE2 specifically, the combination of disabling Canal and kube-proxy in favor of Cilium's unified eBPF stack simplifies the networking layer while dramatically increasing its capabilities.

The swap makes sense when you need L7-aware security policies that can enforce HTTP methods and paths, not just IPs and ports. When you need transparent encryption for compliance without the overhead of a full service mesh. When you need network observability that shows you exactly which services are communicating and what's being denied. And when you're scaling beyond the point where thousands of iptables rules per node become the bottleneck your on-call team dreads.

"The best network policy is one you can actually observe, debug, and trust at scale. eBPF gives us all three. If your RKE2 cluster has outgrown Canal's iptables—and you'll know because your on-call team will tell you—Cilium is the production-grade path forward."

---

Next in the series — Part 6: GitOps with ArgoCD on RKE2. Running Cilium on your RKE2 clusters? Hit any gotchas during the Canal migration? Share your experience in the comments below, or reach out to me.
